Brand Name : | xingjin |
Certification : | CAL,CMA,CNAS,ILAC-MRA,CCC |
Price : | negotiation |
Payment Terms : | T/T, L/C |
Supply Ability : | 30000 set system |
Delivery Time : | 15-20 working days after payment or receipt of L/C |
Model Number : | 8L/16L/20L/30L |
30L Red Hanging Cylinder FM200 Fire Suppression System For Small Single Zone
Parameter:
NO. | Specifications | Parameters |
1. | Capacity | 8l, 10l, 16l, 20l, 30l |
2. | Filling pressure | 1.6Mpa |
3. | Spraying time | ≤8s |
4. | Working temperature | 0~50℃ |
5. | Starting mode | Electrical start or manual start |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in a special place where electrical fire easily happens.
Combined with extinguishing device and electronic accessories, the whole system can actuate
automatically. It can monitor the situation of a protective region through detectors and when there is a fire, it can start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notices the fire when it happens and also it saves much money for employment to supervise the protective area.
The 30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System
is a highly effective and reliable solution designed to protect
small, single-zone areas. This system uses FM200, a clean and
eco-friendly gas that has been proven to effectively suppress fires
in a range of different scenarios.
The system consists of a 30L red cylinder that is filled with FM200
and mounted on the ceiling or wall of the protected area. When a
fire is detected, the system releases the gas into the space,
extinguishing the flames quickly and efficiently.
The design of this system is particularly well-suited to small,
single-zone areas such as server rooms, electrical control rooms,
or other enclosed spaces where the risk of fire is high. Its
compact size and ease of installation make it an ideal choice for
facilities that require a reliable, yet straightforward fire
suppression solution.
This system is also highly customizable and can be designed to meet
the specific needs of individual facilities. For example, it can be
integrated with fire detection systems or configured to discharge
automatically in the event of a fire, or manually by an operator.
Overall, the 30L Red Hanging Cylinder FM200 HFC227ea Fire
Suppression System is an excellent choice for anyone looking for a
high-quality, effective, and reliable fire suppression solution for
a small, single-zone area.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire easily happens, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:
Hanging type fm200 fire suppression device can be divided into two types: one is the electromagnetic type, the other is the temperature-based type.

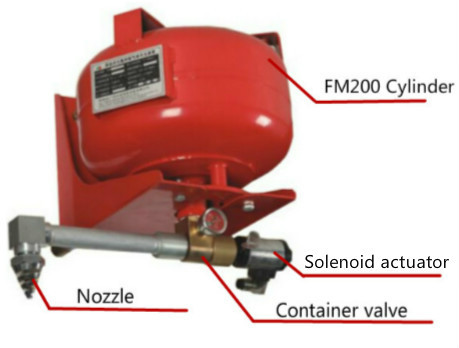

The electromagnetic type hanging fm200 fire suppression device consists of a fm200 cylinder, a container valve, a solenoid actuator, a pressure switch, a stainless steel pipe, and a nozzle.
The temperature-controlled type hanging fm200 fire suppression system prefers a unit of temperature sensor instead of container valve and solenoid valve.
Competitive Advantage:
Though hanging type fm200 fire suppression system has two kinds of system, but their advantages are the same as followings:
1/ Substantial consideration of little protection. Some areas, such as server rooms or electric rooms or the like would be very small, which require little fire extinguishing agent. Then, hanging type system can play its role.
2/ Little occupation of space. As the protection zone is very small, so maybe there is no much space to place other machines or devices or objects. Then, the hanging type is designed with the small but efficient function of fire suppression and overall coverage to the whole room.
3/ Convenient installation and transportation. Because of relative light and small figure, even one person can hold and fix it on the top of ceiling or wall. But additionally, the temperature-controlled model cannot be installed more than one piece in principle or practice.
