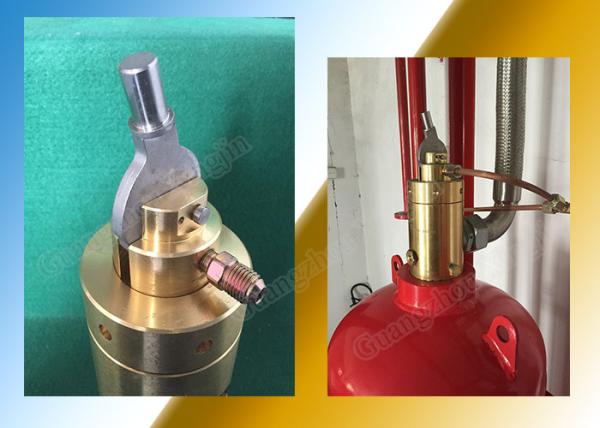

    Fm200 Automatic Fire Extinguisher Valve with Solenoid Actuator

    Fm200 Automatic Fire Extinguisher Ball Valve with Solenoid Actuator


    Description:


    Fm200 container valve with solenoid actuator is started by electromagnetic action . In pipe network system container valve is fixed between storage cylinder and high pressure hose . The effect is for sealing agent in the cylinder. In case of emergency, you can open the valve manually. In cabinet system container valve is fixed between storage cylinder and solenoid valve, but there is no manual valve in this system


    specification


    Model

    Working pressure

    Nominal diameterWorking pressureStarting currentHydraulic pressure
    QRF40/4.2

    4.2MPa

    DN40mm

    DC24V

    ≤1.6A

    6.3MPa

    QRF25/2.5

    2.5MPa

    DN25mm

    DC24V

    ≤1.6A

    3.75MPa

    QRF6/6.6

    6.6MPa

    φ6mm

    DC24V

    ≤1.6A

    9.9MPa


    advantage


    feature


    product show
