Clean Gas Fm 200 Extinguishing System Preparation For Storage Room
Description:
1.Clean gas, colorless and tasteless and non-corrosive
2. No damage to ozone layer
3. Totally automatic system
4. Manual or electromagnetic manipulation and mechanical
manipulation
5. Short time discharge of extinguishing agent
6. Preparation for storage room
Applications:
Electronic computer room, a data processing center,
telecommunications facilities, process control, expensive medical
equipment, industrial equipment, library, museum and art gallery,
clean room, chamber, emergency power facilities, flammable liquid
storage area, etc.
The place where the fire is easy to happen, like paint-spraying
production line, aging-electrical equipment, rolling machine,
printing machine, oil switch, oil immersed transformer, melt
impregnating tank, tank, large generators, drying equipment, cement
production process of pulverized coal, and the ship's engine room,
cargo hold, etc.
Parameter:
| No. | specification | Technical Parameter |
| 1 | Filling pressure | 4.2Mpa |
| 2 | Scale of Protective region for one zone | area:max single-zone is 800m2 volume:max single-zone is 3600m3 |
| 3 | Spraying time | ≤10s |
| 4 | Filling density | ≤950kg/m3 |
| 5 | power | DC24V/1.6A |
| 6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
| 7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% |
| 8 | max working pressure | 5.3Mpa |
| 9 | min working pressure | 4.2Mpa
|

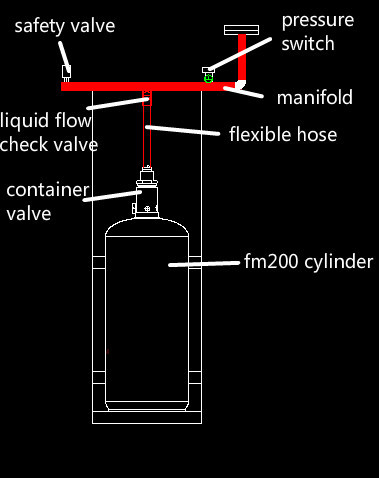

Components:
Pipe network fm200 fire suppression device is composed of the
follow-up components: fm200 agent, fm200 cylinders, container
valves, flexible hoses, liquid flow check valves, a set of
manifold, a safety valve, pressure switch, nitrogen driving
device(s), driving device frame, gas control pipe, gas flow check
valves(it depends), selective valves(it depends), a pair of elbows
and flanges, nozzles.If one set device needs to protect multiple
protected zones, its composition is as above. However, if one set
system just needs to protected single protected zone, the gas flow
check valve and the selective valve should be got rid of from its
composition.
Working principle:
the method of putting out fire: whole flooding
the sample working way: fire happens → the smoke and heat detector
send signal back to the control panel
→ the control panel gets the signal and activates alarm bell →
after a few seconds
delay, the fire extinguishing device activates and put out the
fire.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by
convenient transportation and beautiful environment, is located in
Guangzhou, which plays an important role in communication between
China and the world. We are a manufacturer, and we devote ourselves
to the study and development of HFC-227ea (FM200) productions with
our professional and mature team including the program design team,
the skillful installation team, the quality detecting team and the
after-sell service team. Nowadays, our popular fm200 products are
widely used, such as the pipe network FM200 fire suppression
system, the cabinet type FM200 fire suppression system, the
automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system
and automatic fire suppression tube. As a result of high-quality
products and services as well as the good reputation, our company
is well-received by the customers in China.
Part Cases Show
• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong
Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School,
Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City,
Tobacco Building, etc.
• In Guangdong province, the project cases are GAC Group, 10086 in
Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air
Controller, Yingfu Building in Shenzhen, Bank of Communication in
Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV
Station, etc.
• In Shandong province, the project cases are Lushang Office
Building, Lushang Marketing Center, etc.
Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all
products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
