Hanging Hfc-227ea Extinguishing System with Electrical Actuator
Parameter:
| No. | Specification | Technical Parameter |
| 1 | Filling pressure | 1.6Mpa |
| 2 | Spraying time | ≤8s |
| 3 | Working temperature | 0～50℃ |
| 4 | Starting mode | Electrical start |
Description:
1. Electric insulation, utilization for extinguishing of electrical
combustion
2. No residue and pollution inside protection zone
3. No damage to ozone layer
4. No need for employment of monitor staff
5. Manual or electromagnetic manipulation and mechanical
manipulation
6. Preparation for storage room
7. Colorless, odorless and clean agent
8. Do no harm to the environment
Applications:
Electronic computer room, a data processing center,
telecommunications facilities, process control, expensive medical
equipment, industrial equipment, library, museum and art gallery,
clean room, anechoic chamber, emergency power facilities, flammable
liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying
production line, aging-electrical equipment, rolling machine,
printing machine, oil switch, oil immersed transformer, melt
impregnating tank, tank, large generators, drying equipment, cement
pro duction process of pulverized coal, and the ship's engine room,
cargo hold, etc.
Competitive Advantage:
In terms of description of agent, one of its competent advantages
is that it can be used for all kinds of class fires except metal
fire. And it is clean agent. There is no residue and pollution
after extinguishing.

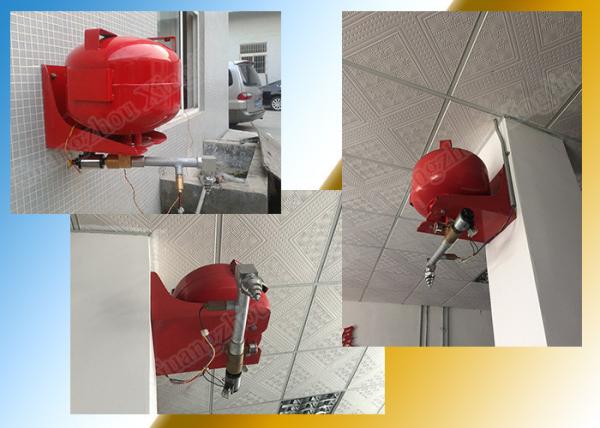

Different from piped network type of fm200 automatic fire
suppression system, it will be simple to install. Because there is
no pipeline installation. If your protective zone is really small
and there is no more space to put extinguishing device, this type
can be under consideration. Because it will be hanged on the
ceiling or attached on the wall.
Attentions:
1/ One protected zone can only be equipped with one
temperature-based hanging type fm200 fire extinguisher.
2/ Users should follow the routine check schedual that we provide
in the manual instruction.
Compositions:
The hanging type fm200 fire suppression system is divided into two
different kinds, they are electromagnetic type and
temperature-based type. As people see in their names, these two
kinds of systems have something different in their compositions.
The electromagnetic hanging type fm200 fire extinguishing system is
formed by: fm200 cylinder, fm200 fire agent, container valve,
solenoid actuator, pressure switch and nozzle.
The temperature-based hanging type fm200 fire extinguisher consists
of: fm200 cylinder, fm200 fire agent, nozzle and temperature
sensor.
