Colorless 180L FM200 Fire Extinguishing System With Single Cabinet
Parameter:
| No. | Specification | Technical Parameter |
| 1 | Filling pressure | 2.5Mpa |
| 2 | Relief pressure | 5.0±0.225Mpa |
| 3 | Spraying time | ≤10s |
| 4 | Working temperature | 0～50℃ |
| 5 | Power | DC24V/1.6A |
| 6 | max working pressure | 4.2Mpa |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and
non-corrosive and electricity-insulating gas without residue and
pollution after extinguishing. And ODP of it is zero. It is a
friendly-environment gas to be used for extinguishing. Also,
because of such feature, it can be used in special place where
electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the
whole system can be actuated automatically. It can monitor the
situation of protective region through detectors and then it can
also start the extinguishing device through solenoid actuator
automatically. So the whole system can achieve automation totally.
Therefore, it can avoid that there is no one who notice the fire
when it happens and also it saves much money for employment to
supervise the protective area.
Applications:
Electronic computer room, a data processing center,
telecommunications facilities, process control, expensive medical
equipment, industrial equipment, library, museum and art gallery,
clean room, emergency power facilities, flammable liquid storage
area, etc.
The place where the fire is easy to happen, like paint-spraying
production line, aging-electrical equipment, rolling machine,
printing machine, oil switch, oil immersed transformer, melt
impregnating tank, tank, large generators, drying equipment, cement
production process of pulverized coal, and the ship's engine room,
cargo hold, etc.
Competitive Advantage:
Cabinet fm200 system: management of big zone, simple integration,
direct spraying effect in protection zone, efficient fire
suppression.
1. Effective firefighting in relatively small region
2. Simple assembly of device without pipeline
3. No extra space to store device
Compositions:
The cabinet type fm200 fire suppression system is very easy to
install because of a few components. A system is usually divided
into two parts, one is the fire extinguishing device part, and the
other is the electrical elements part. Because there is a sole part
for introducing the electrical part, so the following words are
only for talking about the fire extinguishing device part.

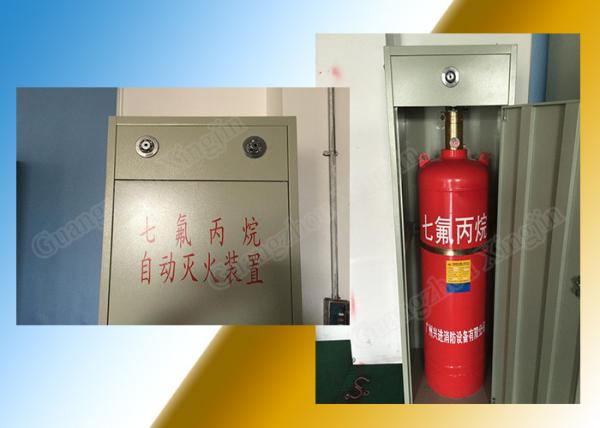

The cabinet type fm200 fire extinguishing device consists of fm200
agent, fm200 cylinder, container valve, flexible hose, liquid flow
check valve, nozzle and the cabinet.

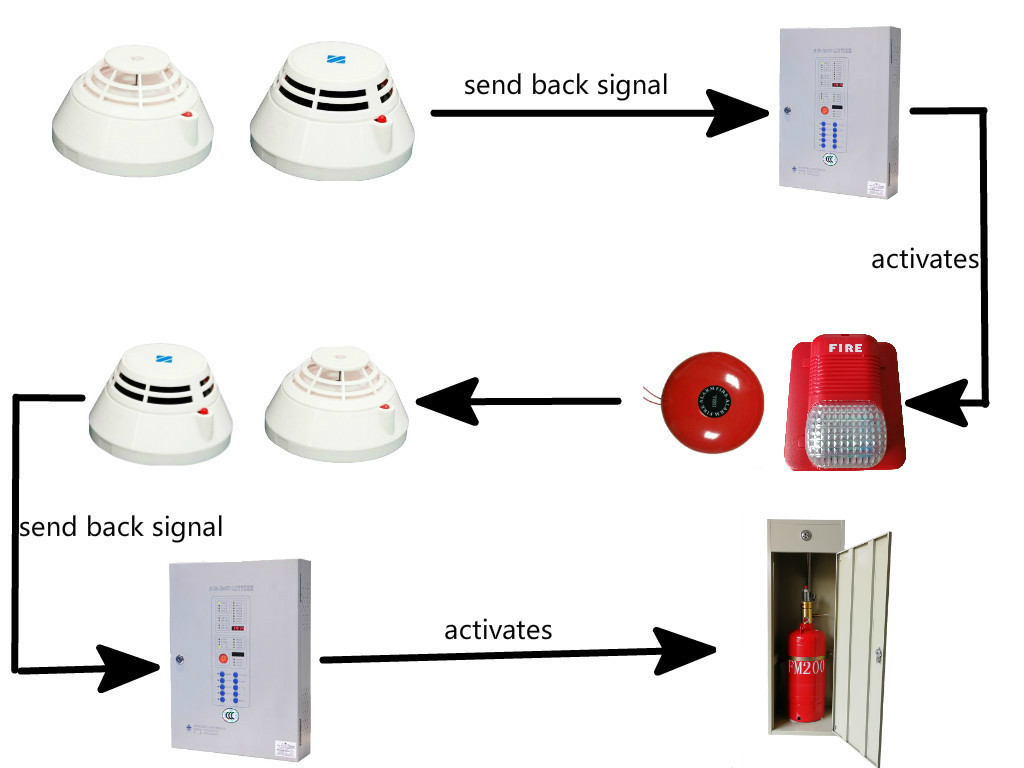

Working principles:
This system uses the whole flooding way to put out the fire.
A fire happens. A somke detector or a heat detector catches
something different and sends a signal to the control panel. After
receiving the signal, the control panel activates an alarm bell to
tell people that there may be a fire and please escape from the
building quickly. Only when receives both signal from the smoke and
heat detector that the control panel will activate the fire
suppression system.
