Enclosed Flooding FM200 Fire Suppression System Without Pollution
for Library
Description
• Automatic HFC-227ea/FM200 fire extinguishing system is a set of
fire extinguishing, automatic control and fire detection in one
system which is the modern intelligent automatic fire extinguishing
device.
• HFC-227ea/FM200 is a kind of colourless, odorless,
tasteless,noncorrosive, electrical insulated, non-conductive fire
agent.
• The ozone-depleting potential value is zero.
• It is currently an ideal substitute for the halon extinguishing
agent.
• Assemble agent according to different filling pressure, different
capacity, different extinguishing agent and different starting
mode.
Parameters
| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Power | DC24V/1.5A |
| 7 | Nitrogen driving device | 6.0±1.0Mpa |
| 8 | Storage surroundings | Temperature:-10~50℃
Relative humidity:≤97% |
| 9 | Proportion | ≤800m² |
| 10 | Volume | ≤3600m³ |
Components
The pipe network model of fm200 fire suppression system consists of
three parts: the pipe network part, the fire fighting equipment
part and the electrical elements part. Here will explain the last
two parts for customers.
The main part of the system is fire fighting equipment. It is
formed by several components: fm200 cylinder, a cylinder frame,
nitrogen-pressure driving device, a driving device frame, container
valves, flexible hoses, liquid flow check valves, gas control
pipes, gas flow check valves, manifolds, safety valves, selective
valves, flanges, elbows and nozzles.
The electrical elements is a set of detecting device, and it always
plays a subsidiary role in each system. The electrical elements
includes: control panel, manual button, discharge indicator light,
alarm bells, sounder with light, smoke detector and heat detector.
Working principle
Here is the illustration of working principle to whole system
Application
The pipe network type fm200 fire suppression system is suitable for
a lot of places and several kinds of fires. The followings are some
examples for customer as reference:
Telecommunications and data processing
Military applications and cell sites
High-tech medical application
Telecommunication centers
Records and data archives
Testing/imaging equipment
Chemical laboratories
Reference material
Switch gear rooms
Computer rooms

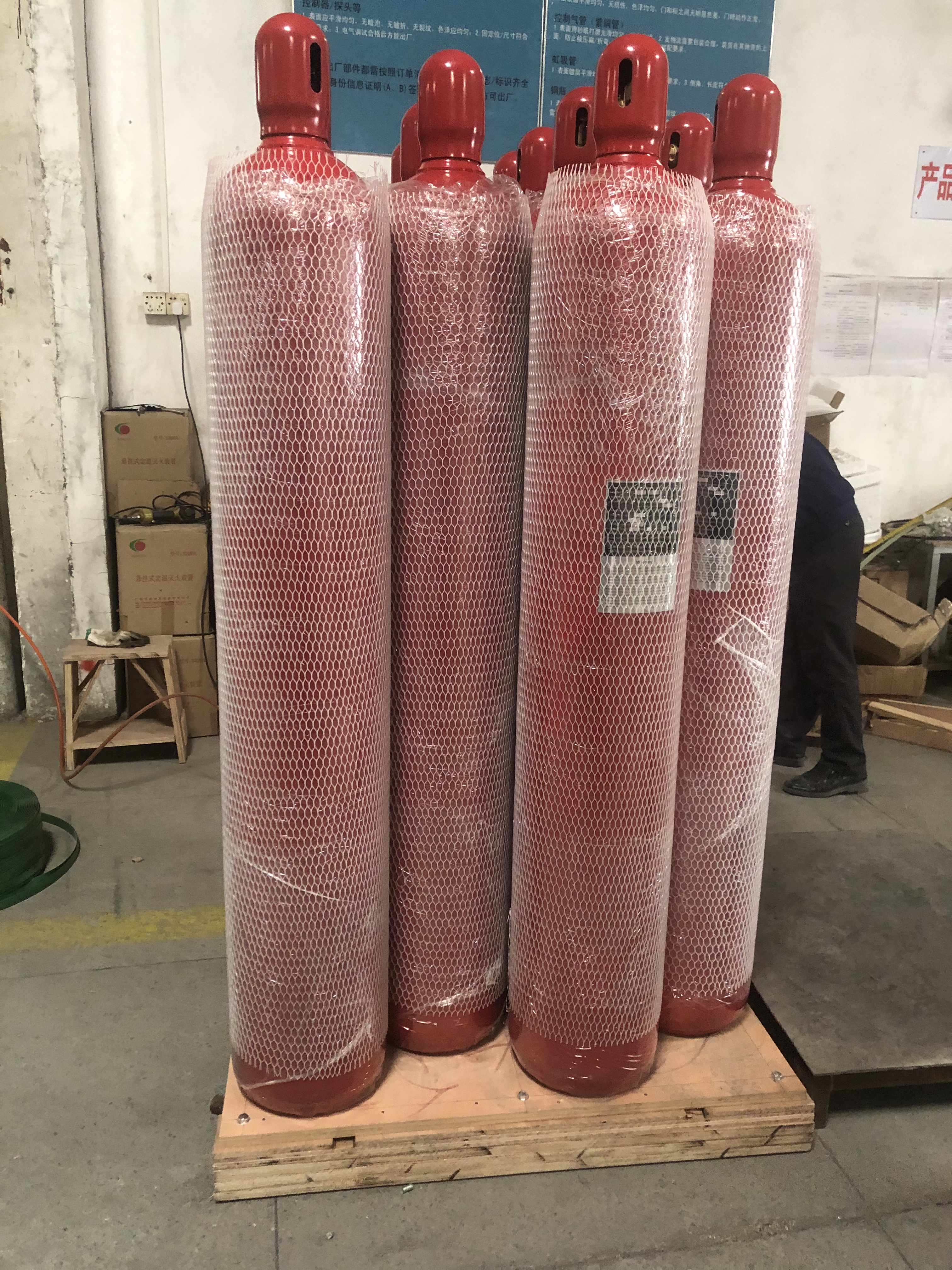

Packages
We always pack it with polyfoam firstly and then put it into a
wooden case. Sometimes, in order to meet with customers or the
safety requirement, we will make a pallet for the goods.
Why Choose Us
- We provide 5 years quality guarantee for the products.
- We provide 8×6 hrs technical support and service.
- Xingjin is running in a high efficiency management system.
- Advanced equipments & professional engineers to promise all
products are quite satisfactory.
After-Sale Service
- We have an efficient sales and after sales team to promise slove
all client's question in time.
- We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
