Automatic FM200 Fire Suppression System Without Pollution for
Telecommunication Room
Description
Though Fm200 is a new and small part of the gas fire-fighting, it
becomes more and more popular all over the world. Because of its
born advantages-odorless, colorless and nontoxic, fm200 fire
suppression system is considered as the best substitute of the
popular series of halon type fire suppression system. The most
attractive point is that the fm200 fire suppression system has no
damage to the ozone layer, even just 1% possibility. Though the
whole system looks very complicated, actually it is easy
installation.
This fm200 fire fighting equipment only fits the occupied room or
places, because it uses whole flooding way to extinguish the fire.
Parameters
| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Power | DC24V/1.5A |
| 7 | Nitrogen driving device | 6.0±1.0Mpa |
| 8 | Storage surroundings | Temperature:-10~50℃
Relative humidity:≤97% |
| 9 | Proportion | ≤800m² |
| 10 | Volume | ≤3600m³ |
Components
The pipe network model of fm200 fire suppression system consists of
actually three parts: the pipe network part, the fire fighting
equipment part and the electrical elements part. Here will explain
the last two parts for customers.
The electrical elements is a set of detecting device, and it always
plays a subsidiary role in each system. The electrical elements
includes:several control panels, several manual buttons, some
discharge indicator lights, some alarm bells, some sounder with
light, some smoke detectors and heat detectors.

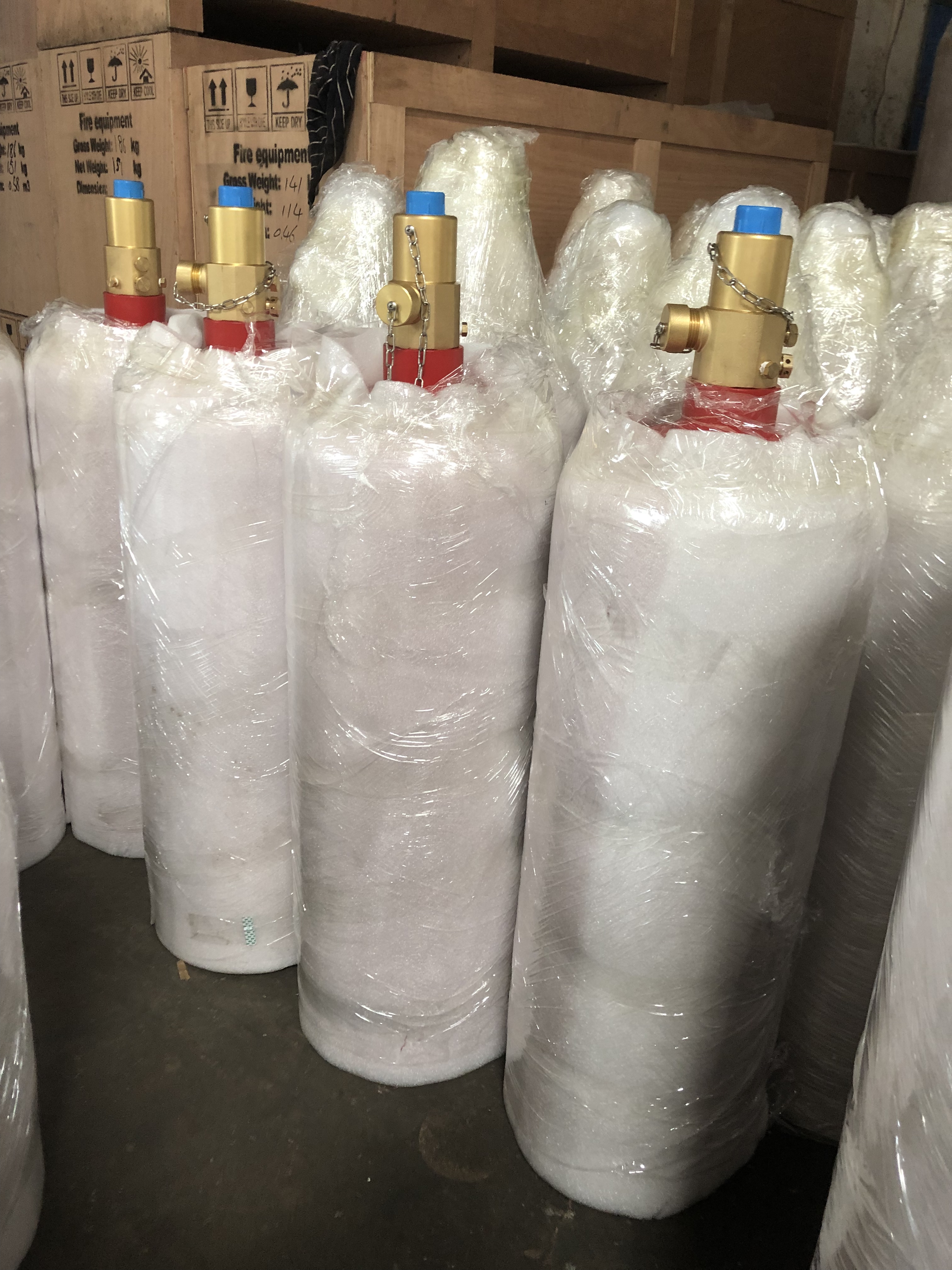

The main part of the system is fire fighting equipment. It is
formed by several components: fm200 cylinders, a cylinder frame,
nitrogen-pressure driving devices, a driving device frame,
container valves, flexible hoses, liquid flow check valves, gas
control pipes, gas flow check valves, manifolds, safety valves,
selective valves, flanges, elbows and nozzles.
Application
The pipe network type fm200 fire suppression system is suitable for
a lot of places and several kinds of fires. The followings are some
examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packages
We always pack it with polyfoam firstly and then put it into a
wooden case. Sometimes, in order to meet with customers or the
safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by
convenient transportation and beautiful environment, is located in
Guangzhou, which plays an important role in communication between
China and the world. We are a manufacturer, and we devote ourselves
to the study and development of HFC-227ea (FM200) productions with
our professional and mature team including the program design team,
the skillful installation team, the quality detecting team and the
after-sell service team. Nowadays, our popular fm200 products are
widely used, such as the pipe network FM200 fire suppression
system, the cabinet type FM200 fire suppression system, the
automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system
and automatic fire suppression tube. As a result of high-quality
products and services as well as the good reputation, our company
is well-received by the customers in China.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
