Non Corrosive Fm200 Fire Suppression System Without Pollution for
Computer Room
Description
The main advantage of FM200 fire suppression, is the small amount
of agent required to suppress a fire. This means fewer cylinders,
therefore less wasted space for storage of FM200 cylinders.
FM200 systems reach extinguishing levels in 10 seconds or less,
stopping ordinary combustible, electrical, and flammable liquid
fires before they cause significant damage. FM200 extinguishes the
fire quickly, which means less damage, lower repair costs. Like any
other fire suppression system, FM200 systems are designed with an
extra margin of safety for people. Refilling FM200 is simple and
cost effective, therefore, it also means less downtime and
disruption to your business.
FM200 is classed as a clean agent which means that it is safe to
use within occupied spaces. The safety of FM200 fire suppression
environments is proven in over a decade of real-world experience
and validated by extensive scientific studies. FM200 systems take
up less storage space than most other fire suppressants.
In addition to the fire protection benefits of using FM200, the
environment will benefit as well. FM200 fire suppressant does not
deplete stratospheric ozone, and has minimal impact on the
environment relative to the impact a catastrophic fire would have.
FM200 fire suppression is a solution that is already working in
more than 100 thousand applications, in more than 70 nations around
the world.
Parameters
| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Power | DC24V/1.5A |
| 7 | Nitrogen driving device | 6.0±1.0Mpa |
| 8 | Storage surroundings | Temperature:-10~50℃
Relative humidity:≤97% |
| 9 | Proportion | ≤800m² |
| 10 | Volume | ≤3600m³ |
Components
The pipe network model of fm200 fire suppression system consists of
actually three parts: the pipe network part, the fire fighting
equipment part and the electrical elements part. Here will explain
the last two parts for customers.
The electrical elements is a set of detecting device, and it always
plays a subsidiary role in each system. The electrical elements
includes:several control panels, several manual buttons, some
discharge indicator lights, some alarm bells, some sounder with
light, some smoke detectors and heat detectors.
The main part of the system is fire fighting equipment. It is
formed by several components: fm200 cylinders, a cylinder frame,
nitrogen-pressure driving devices, a driving device frame,
container valves, flexible hoses, liquid flow check valves, gas
control pipes, gas flow check valves, manifolds, safety valves,
selective valves, flanges, elbows and nozzles.
Application
The pipe network type fm200 fire suppression system is suitable for
a lot of places and several kinds of fires. The followings are some
examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packages

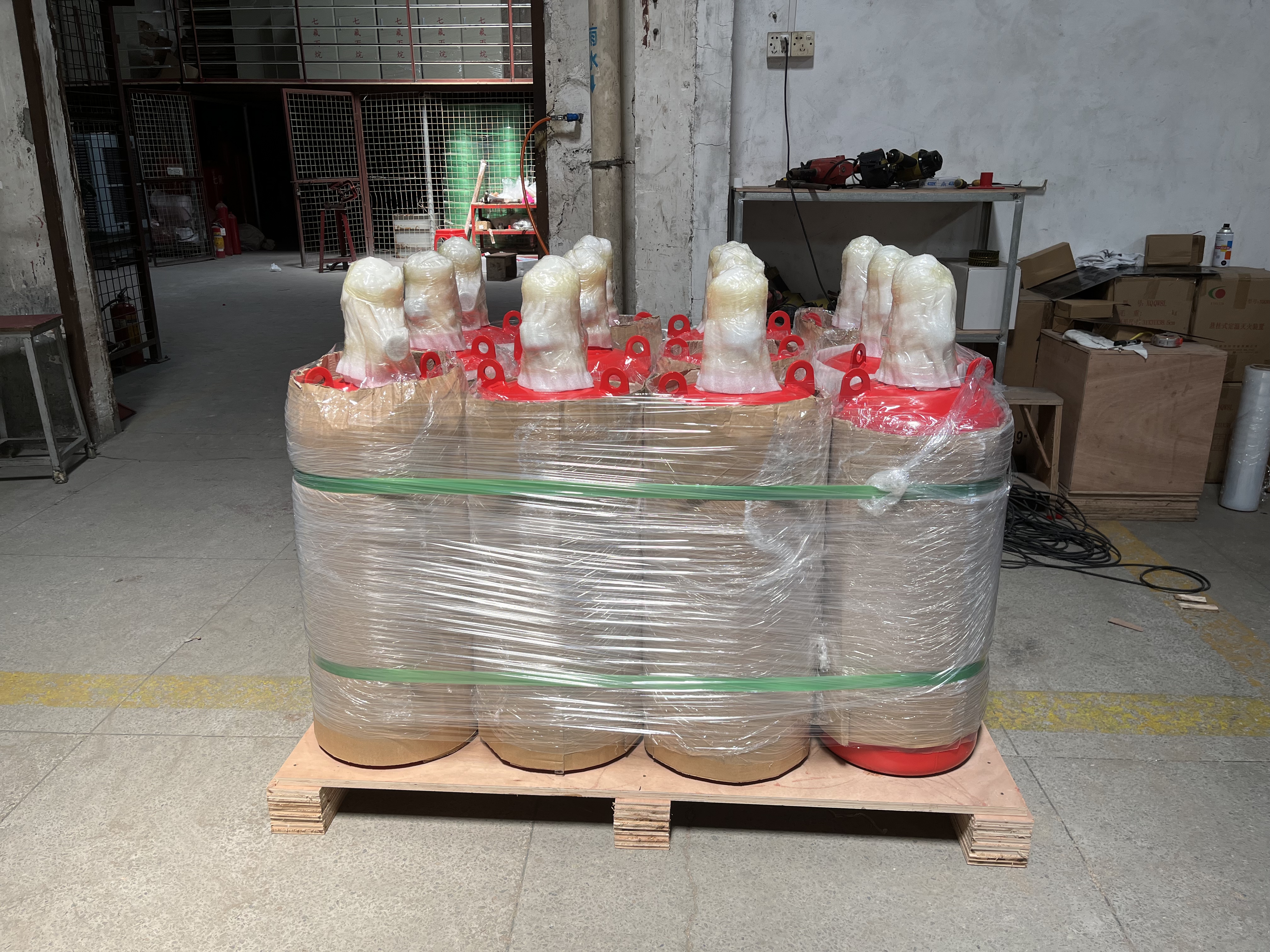

We always pack it with polyfoam firstly and then put it into a
wooden case. Sometimes, in order to meet with customers or the
safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by
convenient transportation and beautiful environment, is located in
Guangzhou, which plays an important role in communication between
China and the world. We are a manufacturer, and we devote ourselves
to the study and development of HFC-227ea (FM200) productions with
our professional and mature team including the program design team,
the skillful installation team, the quality detecting team and the
after-sell service team. Nowadays, our popular fm200 products are
widely used, such as the pipe network FM200 fire suppression
system, the cabinet type FM200 fire suppression system, the
automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system
and automatic fire suppression tube. As a result of high-quality
products and services as well as the good reputation, our company
is well-received by the customers in China.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
