IG541 Fire Suppression System
Description
Inert Gas IG541 Fire Suppression System Cylinder Volume 80L 90L
Enclosed Flooding
IG541 mixture gas (52% nitrogen, 40% argon, 8% carbon dioxide) is a
kind of colorless and tasteless and nontoxic and non-conducting,
pure “green” gas without residue and pollution after extinguishing.
And ODP of it is zero. It is a friendly-environment gas to be used
for extinguishing. Also, because of such feature, it can be used in
special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the
whole system can be actuated automatically. It can monitor the
situation of protective region through detectors and then it can
also start the extinguishing device through solenoid actuator
automatically. So the whole system can achieve automation totally.
Therefore, it can avoid that there is no one who notice the fire
when it happens and it also saves much money for employment to
supervise the protective area.
Management of Multiple zones is also in the safe control of the
whole system. We can use one system to protect multiple zones
through distributing valves. It can make the whole system
alternative aiming at different protective zone. Agent can be
discharged into where the fire happens. It will be very efficient
to put out fire in short time. One thing that need to mention, is
that a little room should be prepare to be as storage space for the
whole system.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Working Pressure | 15Mpa |
| 2 | Device Model | QMH15/80 | QMH15/90 |
| 3 | Capacity | 80Ltr | 90Ltr |
| 4 | Filling Capacity of Gas | 16.89kg | 19kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ325mm |
| 6 | Height of Cylinder | 1578+73mm | 1345+60mm |
| 7 | Spraying Time | ≤120s |
| 8 | Filling Rate | 0.211kg/L |
| 9 | Power | DC24V/1.6A |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ |
| 12 | Max Working Pressure | 17.2Mpa |
| 13 | Min Working Pressure | 13.6Mpa |
Application
Computer room, telecommunication room, transformer room, electrical
switch and distribution room, generator room, leaching tank, drying
equipment, paint spraying booth, electrical instrument room,
control center, library, archives, treasure trove of cultural
relics, etc.
Packages
We always pack it with polyfoam first and then put it into a wooden
case. Sometimes, in order to meet with customers or the safety
requirement, we will make a pallet for the goods.
Advantages
In terms of description of agent, one of its competent advantages
is that it can be used for all kinds of class fires except metal
fire. And it is clean agent. There is no residue and pollution
after extinguishing.
Another one is that IG541 extinguishing system is special for
critical assets or device. It will have no damage for your
property. Relatively, it is cheap and effective to be chosen as
fire suppression system.
It is very efficient for you to protect your possession. Since it
is a system, it include extinguishing device to put out fire at
short time, specially, shorter than 10 second. It means all agent
will be discharged in so short time. Then it will be flooding
overall. In addition, it has time-delay mechanism. It is around 2
minute. It means when fire happens, there is enough time left to
evacuate people from hazardous place.
It can let multiple zones are protectively in the control of one
system. Then it will save much money for big and multiple zones.

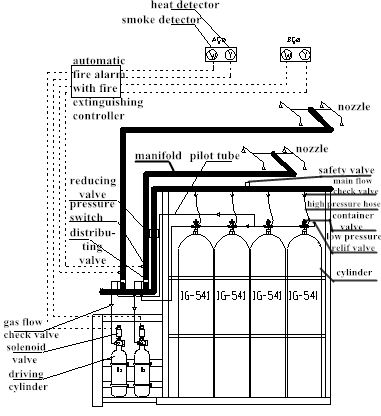

Mimic Diagram
Multiple cylinders for one zone
Multiple cylinders for multiple zones
