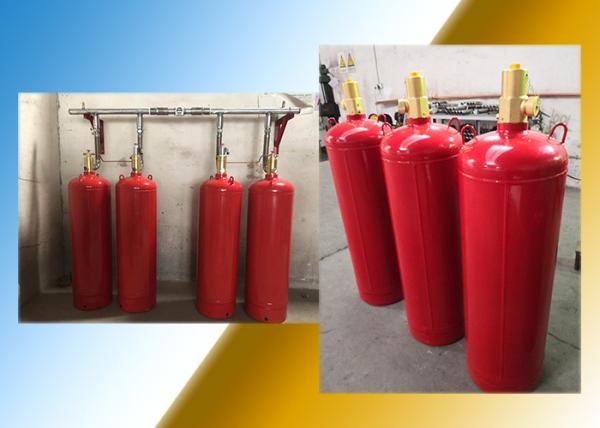

FM200 gas cylinder filled with clean agent hfc-227ea fire
suppression system
Parameter:
| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Power | DC24V/1.6A |
| 7 | Nitrogen driving device | 6.0±1.0Mpa |
| 8 | Storage surroundings | Temperature:-10~50℃
Relative humidity:≤97% |
| 9 | Proportion | ≤800m² |
| 10 | Volume | ≤3600m³ |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and
non-corrosive and electricity-insulating gas without residue and
pollution after extinguishing. And ODP of it is zero. It is a
friendly-environment gas to be used for extinguishing. Also,
because of such feature, it can be used in special place where
electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the
whole system can be actuated automatically. It can monitor the
situation of protective region through detectors and then it can
also start the extinguishing device through solenoid actuator
automatically. So the whole system can achieve automation totally.
Therefore, it can avoid that there is no one who notice the fire
when it happens and it also saves much money for employment to
supervise the protective area.
Management of Multiple zones is also in the safe control of the
whole system. We can use one system to protect multiple zones
through selective valves. It can let the whole system alternative
aiming at different protective zone. Agent can be discharged into
where the fire happens. It will be very efficient to put out fire
in short time. One thing that need to mention, is that a little
room should be prepare to be as storage space for the whole system.
Applications:
Electronic computer room, a data processing center,
telecommunications facilities, process control, expensive medical
equipment, industrial equipment, library, museum and art gallery,
clean room, emergency power facilities, flammable liquid storage
area, etc.
The place where the fire is easy to happen, like paint-spraying
production line, aging-electrical equipment, rolling machine,
printing machine, oil switch, oil immersed transformer, melt
impregnating tank, tank, large generators, drying equipment, cement
production process of pulverized coal, and the ship's engine room,
cargo hold, etc.
Working principle:
Here is the illustration of working principle to whole system,
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by
convenient transportation and beautiful environment, is located in
Guangzhou, which plays an important role in communication between
China and the world. We are a manufacturer, and we devote ourselves
to the study and development of HFC-227ea (FM200) productions with
our professional and mature team including the program design team,
the skillful installation team, the quality detecting team and the
after-sell service team. Nowadays, our popular fm200 products are
widely used, such as the pipe network FM200 fire suppression
system, the cabinet type FM200 fire suppression system, the
automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system
and automatic fire suppression tube. As a result of high-quality
products and services as well as the good reputation, our company
is well-received by the customers in China.
Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all
products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
