    High Pressure CO2 Fire Extinguishing System Quality Assurance Price Concessions Factory Direct Sales

    Ask Lasest Price
    Brand Name : xingjin
    Model Number : QME70
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C, D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability : 30000 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    High Pressure CO2 Fire Extinguishing System Quality Assurance Price Concessions Factory Direct Sales

    CO2 fire extinguishing system

    Description:


    Carbon Dioxide (CO2) is an excellent fire suppression agent. It has been used in the fire protection industry for many years, and is listed under NFPA-12 Carbon Dioxide Fire Extinguishing Systems. CO2 is used for a variety of systems; including total flooding, local application, and inerting. CO2 extinguishes a fire by removing the oxygen from the surrounding area, and for local application type systems, breaks the fire triangle by removing the heat. Because of the safety considerations when using CO2, it is only used for very specific applications, and not where the hazards are occupied. Please consult AFT with any questions using CO2. It can be supplied in high pressure and low pressure storage tanks.

    Being one of the major players in the power generation fire protection industry, it is not uncommon to supply a 6 ton storage tank for a turbine site. For many industrial applications, we supply high pressure CO2 cylinders. We also supply the associated detection and control equipment required. If you would like to speak with us regarding CO2 fire suppression systems, please feel free to contact us.


    Parameter:


    No.SpecificationTechnical Parameter
    1Device ModelQME70
    2Capacity70Ltr
    3Filling Volume of Gas42kg
    4Working Pressure5.7MPa
    5Max Working Pressure12.4MPa
    6Spraying Time≤60s
    7Max Filling Rate0.6kg/L
    8PowerDC24V/1.6A
    9Working Pressure of Releasing DeviceContainer Valve: 19±0.95MPa;
    Manifold: 15±0.75MPa
    10Nitrogen Pressure of Driving6.0±1.0Mpa(20℃)
    11Condition of Reserving Room for ContainerTemperature: 0~50℃


    Components

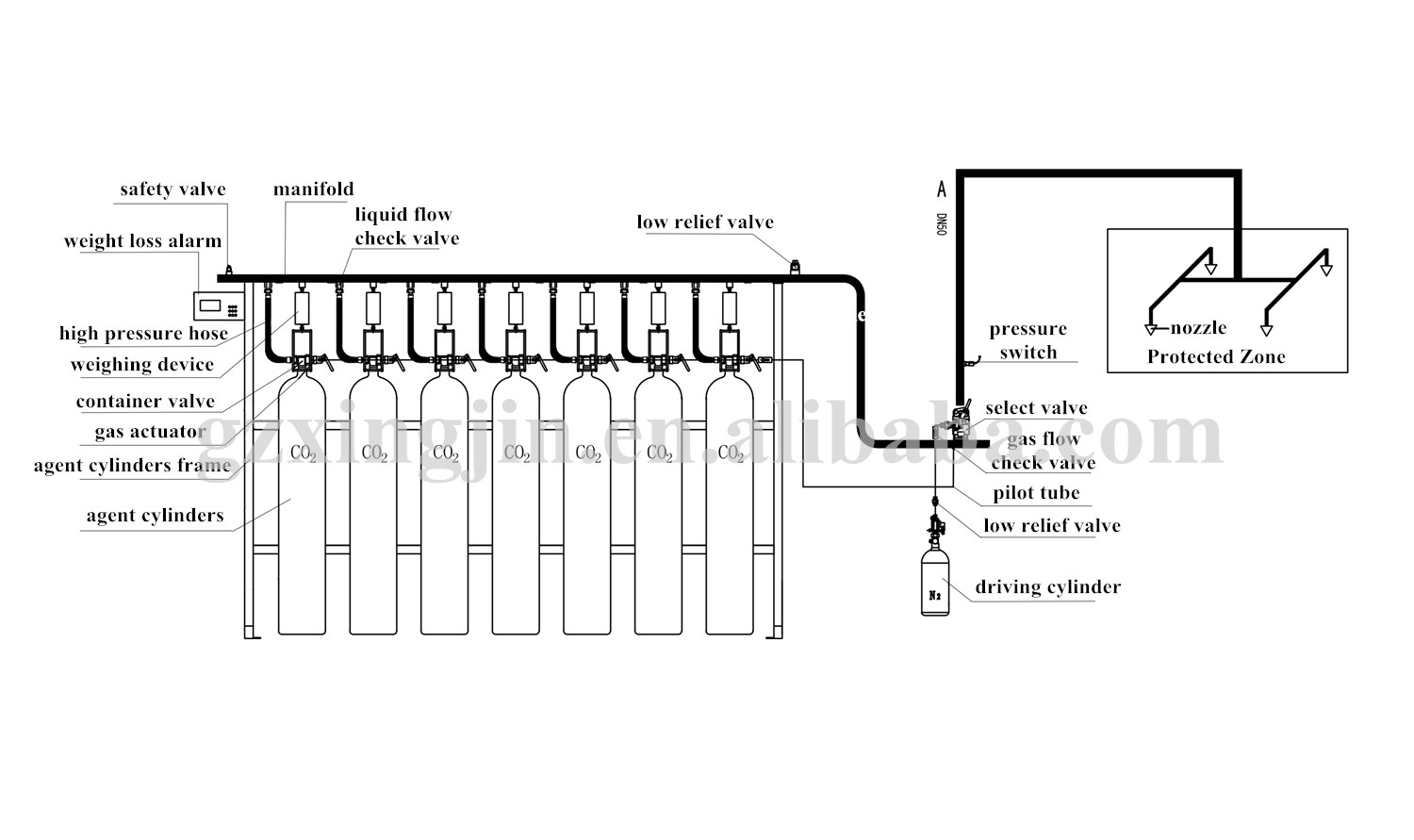

    Pipe network type of CO2 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

    Extinguishing devices are such things, like cylinder to fill and store CO2, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.

    Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.

    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

    These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.


    High Pressure CO2 Fire Extinguishing System Quality Assurance Price Concessions Factory Direct Sales


    Applications:


    Library and archives room, electronic computer room, electrical substation, telecommunication room, hangar, garage, marine engine room, cargo, paint-spraying room, boiler room, control center, etc.

    It is suitable for putting out all kinds of the fires of flammable liquid and solid matter; gas fire in which power can be cut off before extinguishing the fire.
