30MPa IG100 Inert Gas Fire Suppression System

Inert Gas IG100 Fire Suppression System Cylinder Volume 80L Enclosed Flooding

Description

Inert gas fire extinguishing systems are the safe, natural way to extinguish a fire. Because of its unique patented valve assembly, the agent enters the protected zone within the industry required 60 seconds but at a steady flow rate — preventing destructive turbulence from occurring. This constant flow rate allows for the use of small-diameter, low pressure (and less expensive) piping from the inert gas container all the way to the nozzle. And, the necessary venting area is much smaller, which can reduce installation costs by as much as 60% on venting hardware..

Parameters

Components

Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.

Application

The following are typical hazards protected by INERGEN systems:

Computer rooms

Subfloors

Tape storage

Telecommunications/Switchgear

Vaults

Process equipment

All normally occupied or unoccupied areas where electronic equipment is either very sensitive or irreplaceable

Packages

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Advantages

• Compared with the traditional 15MPa system, the number of fire extinguishing agent cylinders can be saved by 25%-50%.
• The building area between cylinders is effectively reduced, and the overall occupation and utilization rate of the building are improved.
• Constant 6MPa low pressure release can reduce the cost of pipeline and pipe fittings.
• The constant release pressure of 6MPa provides more lasting and effective pressure, and the transmission distance can reach 200 meters.
• The release of the whole system with low pressure can only have a less impact on personnel on sites, equipment and building structure and it is more safety.
• The external constant pressure reliever can only bear the pressure when the system is spraying, which is convenient for dis-assembly and maintenance and effectively reduces the failure rate of the system.
• After spraying, the system does not need to replace any parts, simple dis-assembly and secondary filling, the system can be quickly put into operation.
• The opening area of the pressure-relief device is reduced. the input cost of the pressure-relief device is directly reduced, and the safety buckle is installed and arranged more simply.
• Nitrogen fire extinguishing system(IG-100) can be widely used to make rapid response to fire, protect staffs on sites, sudden fire, important places sensitive to chemical reaction and effectively protect the safety of personnel and property.

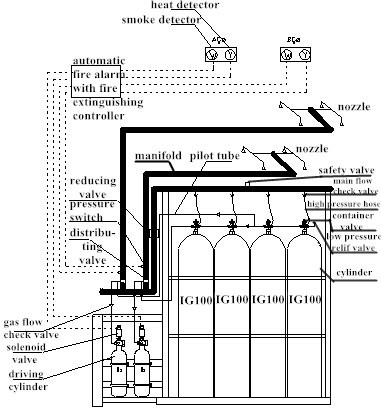

Mimic Diagram

Multiple cylinders for multiple zones

Multiple cylinders for one zone
